S -9 DYNAMO HUB 6V3W 646~716mm



Suitable for all different sized wheels
From wheel size 400 mm(16”) to 535 mm(20”):

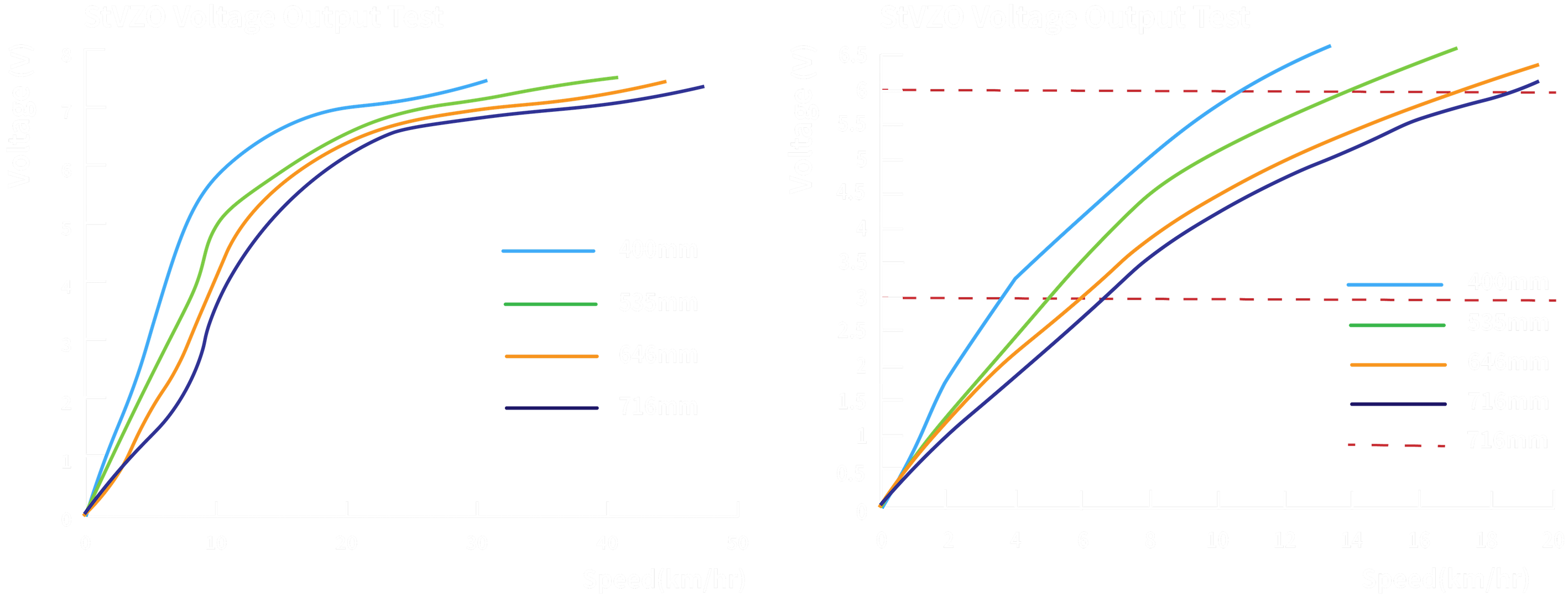

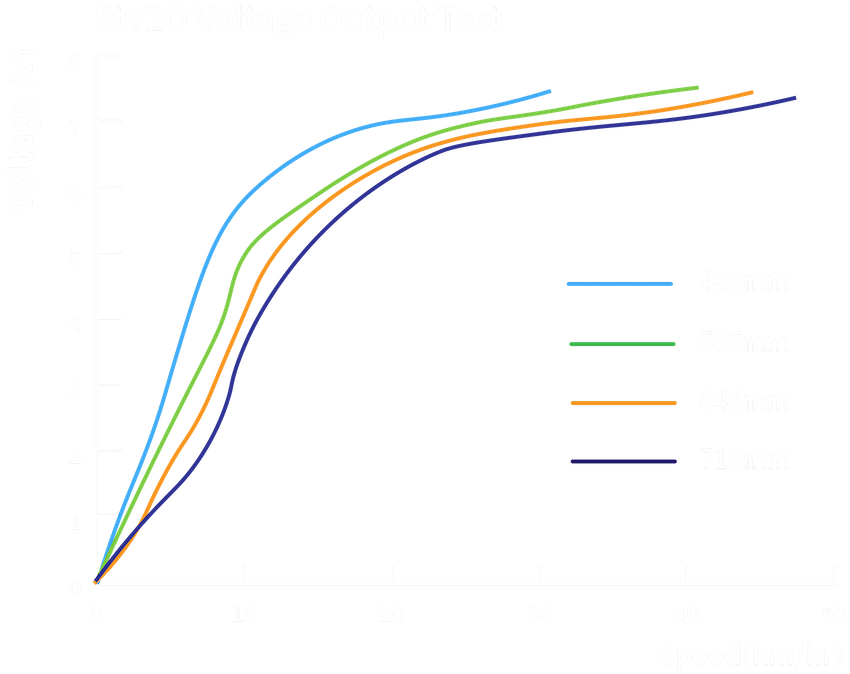

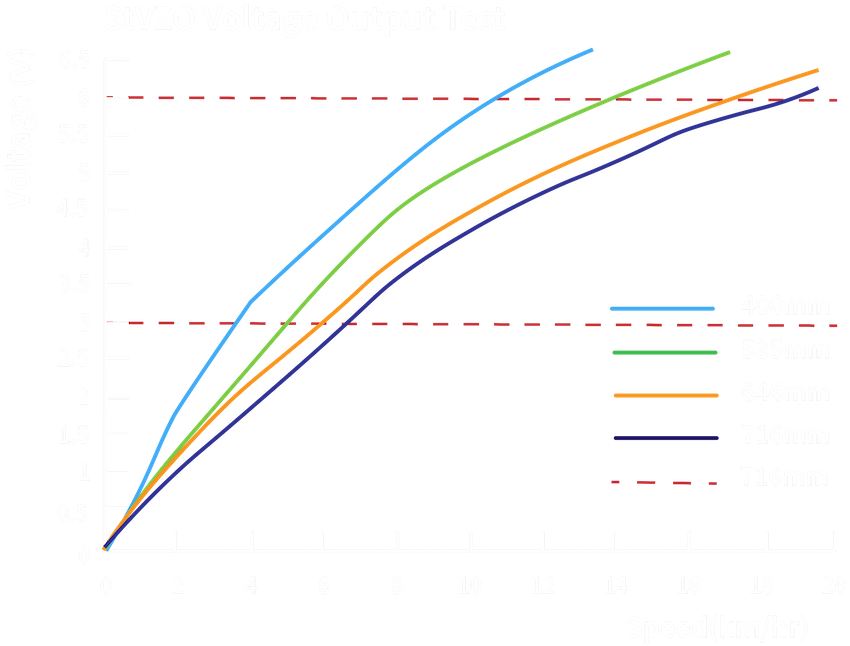

The 9 series’ output perfectly matches German StVZO 6V3W/20” regulation. As can be seen from the table, from wheel size 400 mm(16”) to 535 mm(20”), the 9 series output is designed to meet StVZO regulation.
From wheel size 646 mm(26”) to 716 mm(28”):
According to German StVZO, it requires 3V output at a low speed of 5km/h. If the 9 series is set on wheel sizes of 646 mm(26”) and 716 mm(28”), it offers 3V output speed at 5.8 km/h and 6.4 km/h respectively. To have 3V output, it only needs to slightly increase 1.4 km/h speed.
Furthermore, according to German StVZO 6V3W regulation, it requires 5.7V output at 15 km/h. If we set the 9 series on wheel sizes of 646 mm(26”) and 716 mm(28”), the 9 series offers 5.7V output when speed at 15.7 km/h and 17.7 km/h respectively. To have 5.7V output, it only needs to increase 2.7 km/h speed. As for 6V3W, the German StVZO approved hubs in the current market normally offer 6V3W output at around 17 km/h.
Meanwhile, 9 series offers 6V3W output for 646 mm(26”) and 716 mm(28”) wheels when speed at 16.7km/h and 18.6 km/h respectively.
COMPARE

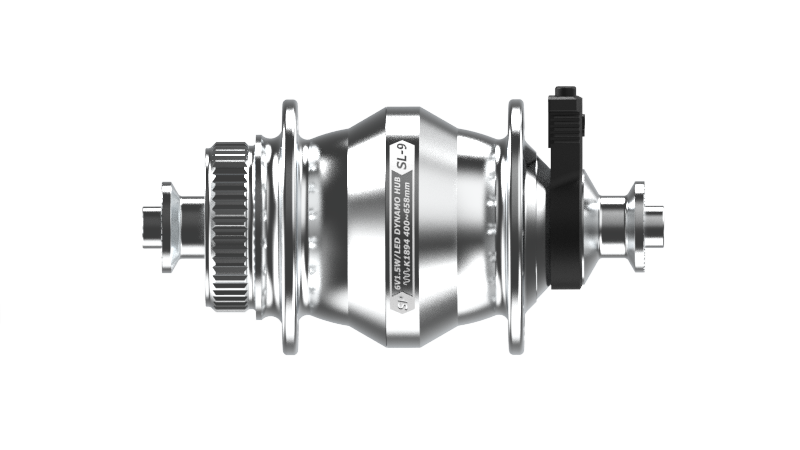

SL-9
Weight 310g
Axle Type QR
Brake Type Centerlock Brake
Spoke P.C.D 44mm
Flange Diameter 53mm
O.L.D 100mm
Max Hub Diameter 50mm
Spoke Holes 24H/28H/32H/36H
Color

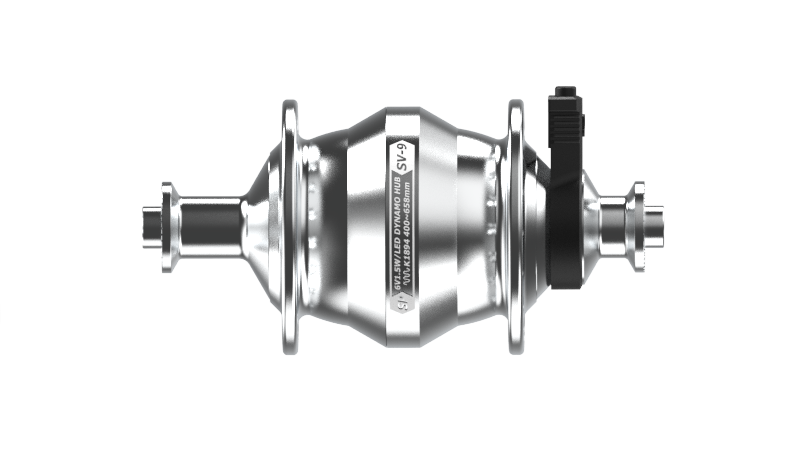

SV-9
Weight 300g
Axle Type QR
Brake Type Rim Brake
Spoke P.C.D 44mm
Flange Diameter 53mm
O.L.D 100mm
Max Hub Diameter 50mm
Spoke Holes 20H/24H/28H/32H/36H
Color

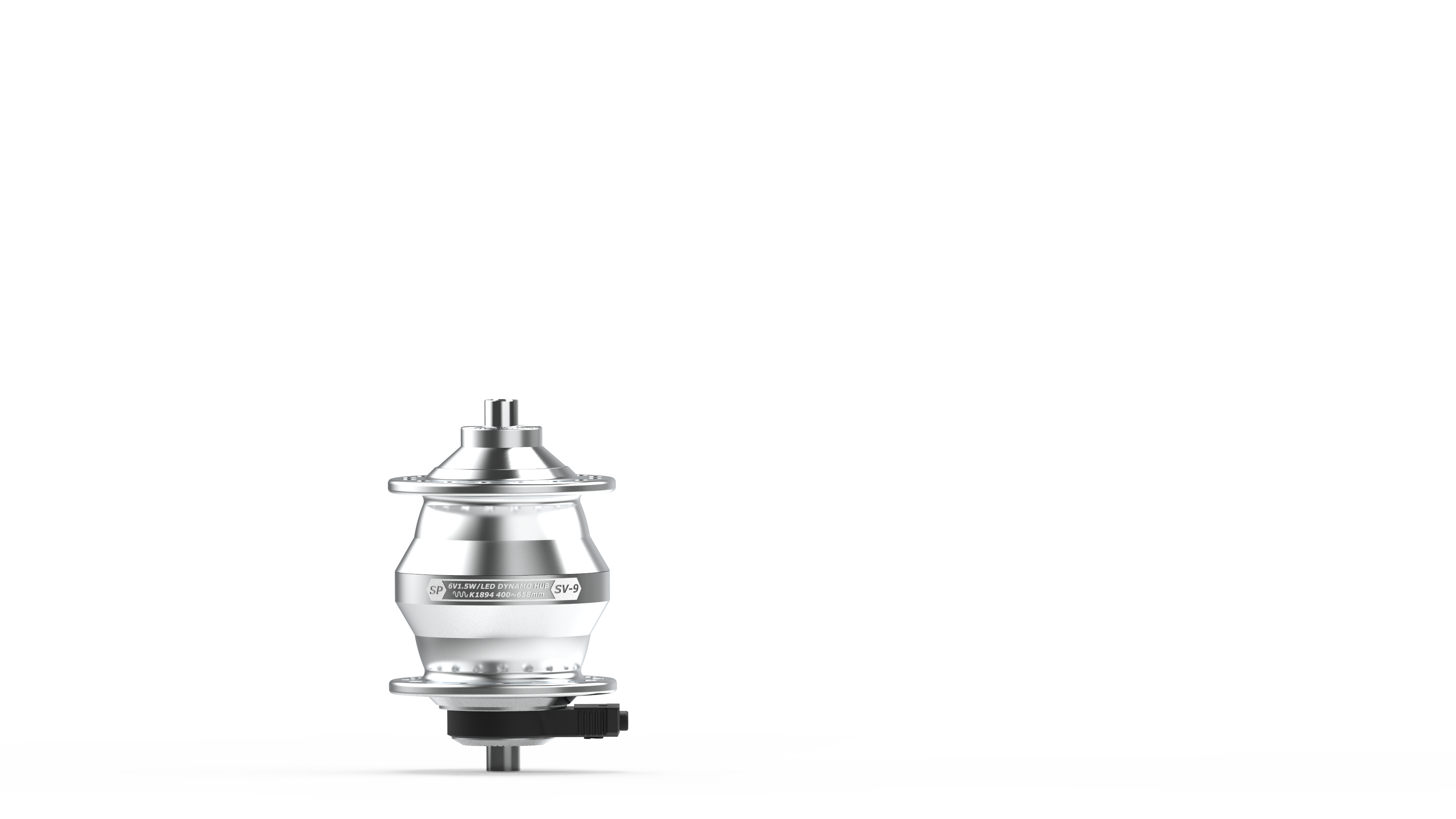

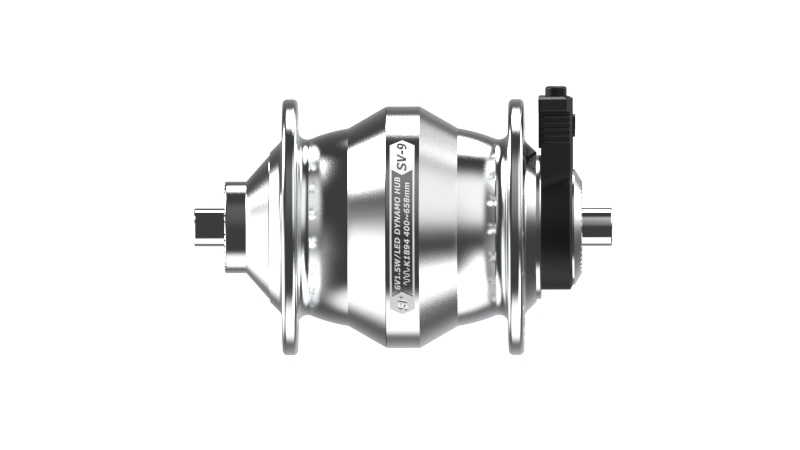

SV-9-FC
Weight 290g
Axle Type QR
Brake Type Rim Brake
Spoke P.C.D 44mm
Flange Diameter 53mm
O.L.D 74mm
Max Hub Diameter 50mm
Spoke Holes 28H
Color
